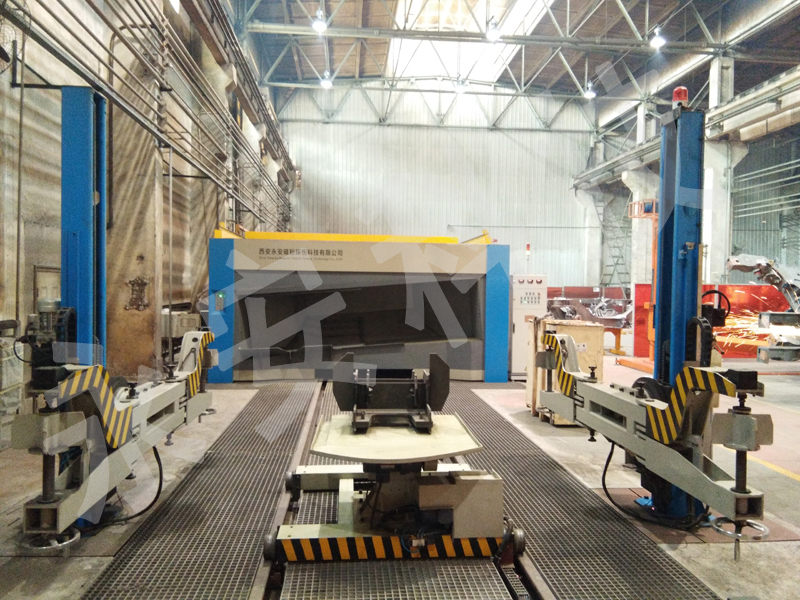

| XWD-D型旋轉磁場構架整體磁粉探傷機 適用范圍該探傷機適用于鐵路客車、動車組車輛新造及檢修時轉向架構架整體的濕法熒光磁粉探傷。特點及技術指標1. 采用旋轉磁場非接觸磁化技術對轉向架構架整體磁化，磁化裝置無需與工件接觸，探傷過程中不發熱、不打火，避免了通電打火灼傷工件的弊病并且磁化電流穩定可靠，提高了設備的可靠性及安全性。 2. 構架水平放置在支撐回轉驅動機構上，探傷時構架自動旋轉噴淋及磁化，構架水平轉動一周即可完成整體檢測，達到一次進入磁化裝置即可完成構架整體探傷的目的。 3. 磁化裝置和構架支撐回轉裝置采用了傾斜的結構形式，使得被檢測構架在探傷過程中傾斜一定角度，可以有效消除構架上表面形成的磁懸液積聚，便于磁痕保留和觀察。 4. 采用變頻調速裝置來控制被檢測構架的旋轉，使觀察和操作更方便。 5. 磁化回路采用了先進的電力補償及控制技術，在不降低靈敏度的前提下，可以使磁化功率減少百分之三十。 6. 探傷機功率：120kW 7. 暫載率：30% 8. 磁化方式：旋轉磁場 9. 旋轉磁化峰值電流：0-3000A連續可調 10. 檢測靈敏度：清晰顯示A1型標準試片 15/50的人工缺陷 11. 檢測部位表面磁場強度：≥2400A/m 12. 磁化腔口尺寸：4088mm×988mm 13. 剩磁：不大于0.7mT 14. 構架回轉速度：0.2～1rpm 15. 檢測效率：2p/h 16. 磁懸液箱容量：100L 17. 可檢測構架最大重量：2000kg
XWD-D Rotating Magnetic Field Magnetic Particle Flaw Detector for Bogie Frame Applicable scope The inspection machine is suitable for wet fluorescent magnetic particle inspection of bogie frame of railway vehicle and emus Features and Technical parameters 1. Non-contact magnetization technology of rotating magnetic field is adopted to magnetize the bogie frame as a whole, the magnetization device does not need to contact with the workpiece, and there is no heating or ignition in the process of flaw detection, which avoids the maladies of burning the workpiece by electric ignition, and the magnetization current is stable and reliable, improving the reliability and safety of the equipment.2. The bogie frame is placed horizontally on the supporting slewing driving mechanism. During flaw detection, the frame automatically rotates and magnetizes. The whole inspection can be completed by turning the frame horizontally for one circle3. The magnetization device and the truss support and rotation device adopt the inclined structure form, so that the truss under test tilts at a certain Angle during the inspection process, which can effectively eliminate the accumulation of magnetic suspensions formed on the upper surface of the truss and facilitate the retention and observation of magnetic marks4. Frequency conversion device is used to control the rotation of the tested frame, which makes the observation and operation more convenient.5. The magnetic circuit adopts advanced power compensation and control technology, which can reduce the magnetic power by 30% without reducing the sensitivity.6. Input power: 120kW 7. Temporary load rate: 30% 8. mode of magnetization: rotating magnetization 9. The peak value current of rotating magnetization:0-3000A continuously adjustable 10. Detecting sensitivity: Clearly displays the artificial defect of A1 standard test piece 15/50 11. Magnetic intensity of testing parts surface: ≥2400A/m 12. Magnetization cavity size: 4088mm * 988mm 13. Residual Field: ≤0.7mT 14. Rotation speed of frame: 0.2 - 1rpm 15. Detection efficiency: 2p/h 16. Magnetic suspension tank capacity:100L 17. Maximum weight of frame can be detected:2000kg
|
